9  Spatial Neighbours

9.1 Package

9.2 Data

columbus <- st_read(system.file("shapes/columbus.gpkg", package="spData")[1], quiet=TRUE)
columbus
Simple feature collection with 49 features and 20 fields
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 5.874907 ymin: 10.78863 xmax: 11.28742 ymax: 14.74245
Projected CRS: Undefined Cartesian SRS with unknown unit
First 10 features:
       AREA PERIMETER COLUMBUS_ COLUMBUS_I POLYID NEIG  HOVAL    INC     CRIME
1  0.309441  2.440629         2          5      1    5 80.467 19.531 15.725980
2  0.259329  2.236939         3          1      2    1 44.567 21.232 18.801754
3  0.192468  2.187547         4          6      3    6 26.350 15.956 30.626781
4  0.083841  1.427635         5          2      4    2 33.200  4.477 32.387760
5  0.488888  2.997133         6          7      5    7 23.225 11.252 50.731510
6  0.283079  2.335634         7          8      6    8 28.750 16.029 26.066658
7  0.257084  2.554577         8          4      7    4 75.000  8.438  0.178269
8  0.204954  2.139524         9          3      8    3 37.125 11.337 38.425858
9  0.500755  3.169707        10         18      9   18 52.600 17.586 30.515917
10 0.246689  2.087235        11         10     10   10 96.400 13.598 34.000835
       OPEN    PLUMB DISCBD     X     Y NSA NSB EW CP THOUS NEIGNO
1  2.850747 0.217155   5.03 38.80 44.07   1   1  1  0  1000   1005
2  5.296720 0.320581   4.27 35.62 42.38   1   1  0  0  1000   1001
3  4.534649 0.374404   3.89 39.82 41.18   1   1  1  0  1000   1006
4  0.394427 1.186944   3.70 36.50 40.52   1   1  0  0  1000   1002
5  0.405664 0.624596   2.83 40.01 38.00   1   1  1  0  1000   1007
6  0.563075 0.254130   3.78 43.75 39.28   1   1  1  0  1000   1008
7  0.000000 2.402402   2.74 33.36 38.41   1   1  0  0  1000   1004
8  3.483478 2.739726   2.89 36.71 38.71   1   1  0  0  1000   1003
9  0.527488 0.890736   3.17 43.44 35.92   1   1  1  0  1000   1018
10 1.548348 0.557724   4.33 47.61 36.42   1   1  1  0  1000   1010
                             geom
1  POLYGON ((8.624129 14.23698...
2  POLYGON ((8.25279 14.23694,...
3  POLYGON ((8.653305 14.00809...
4  POLYGON ((8.459499 13.82035...
5  POLYGON ((8.685274 13.63952...
6  POLYGON ((9.401384 13.5504,...
7  POLYGON ((8.037741 13.60752...
8  POLYGON ((8.247527 13.58651...
9  POLYGON ((9.333297 13.27242...
10 POLYGON ((10.08251 13.03377...

9.3 Explore data structure

st_crs(columbus)
Coordinate Reference System:
  User input: Undefined Cartesian SRS with unknown unit
  wkt:
ENGCRS["Undefined Cartesian SRS with unknown unit",
    EDATUM["Unknown engineering datum"],
    CS[Cartesian,2],
        AXIS["x",unspecified,
            ORDER[1],
            LENGTHUNIT["unknown",0]],
        AXIS["y",unspecified,
            ORDER[2],
            LENGTHUNIT["unknown",0]]]
sf::st_geometry(columbus)
Geometry set for 49 features
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 5.874907 ymin: 10.78863 xmax: 11.28742 ymax: 14.74245
Projected CRS: Undefined Cartesian SRS with unknown unit
First 5 geometries:

9.4 Visualise data

st_geometry() is an sf function that extracts only the geometry from an sf object.

st_geometry(columbus)
Geometry set for 49 features
Geometry type: POLYGON
Dimension:     XY
Bounding box:  xmin: 5.874907 ymin: 10.78863 xmax: 11.28742 ymax: 14.74245
Projected CRS: Undefined Cartesian SRS with unknown unit
First 5 geometries:

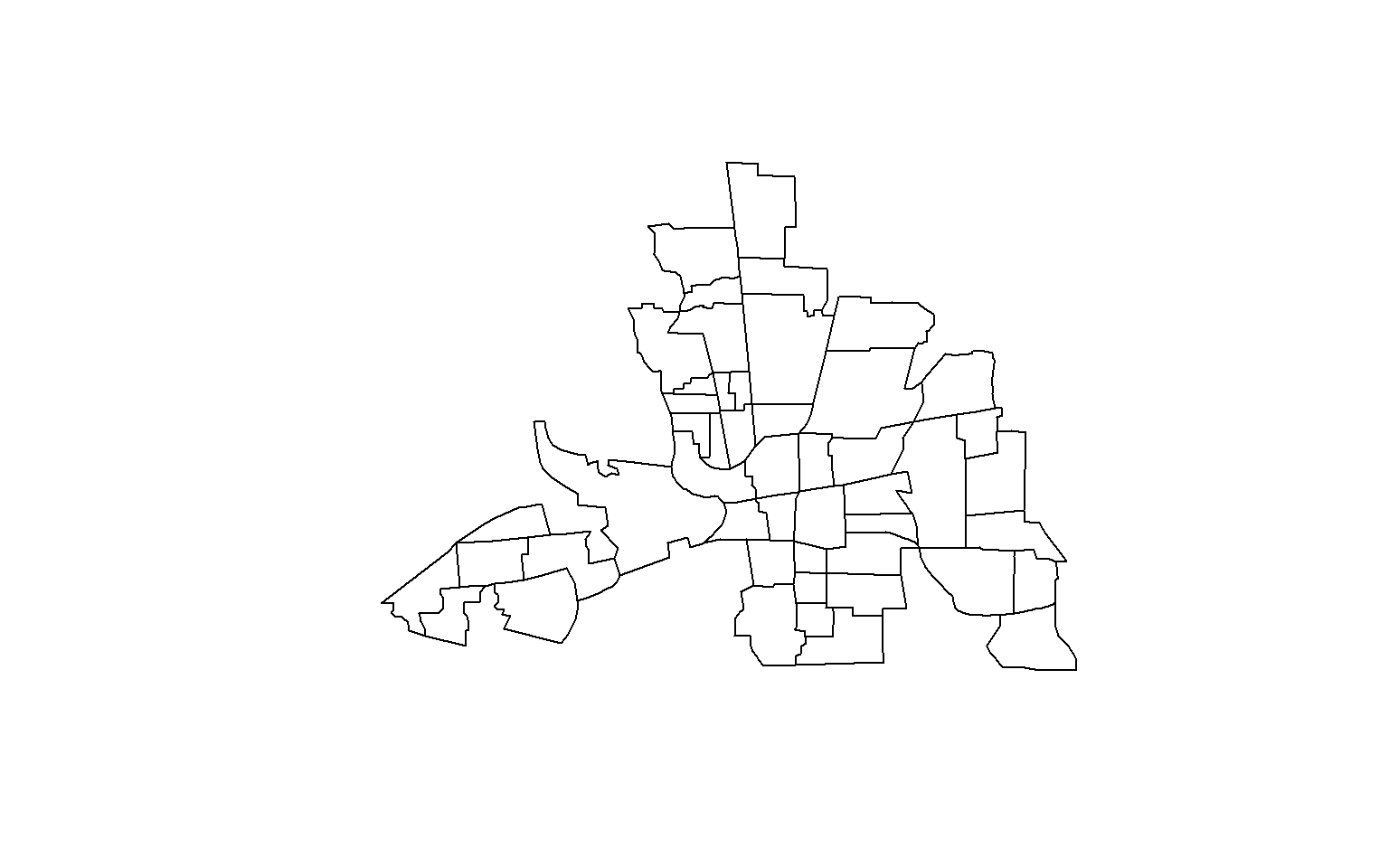

plot(st_geometry(columbus))

9.5 Exercise

  1. Your turn: Use ggplot2 to draw the plot.

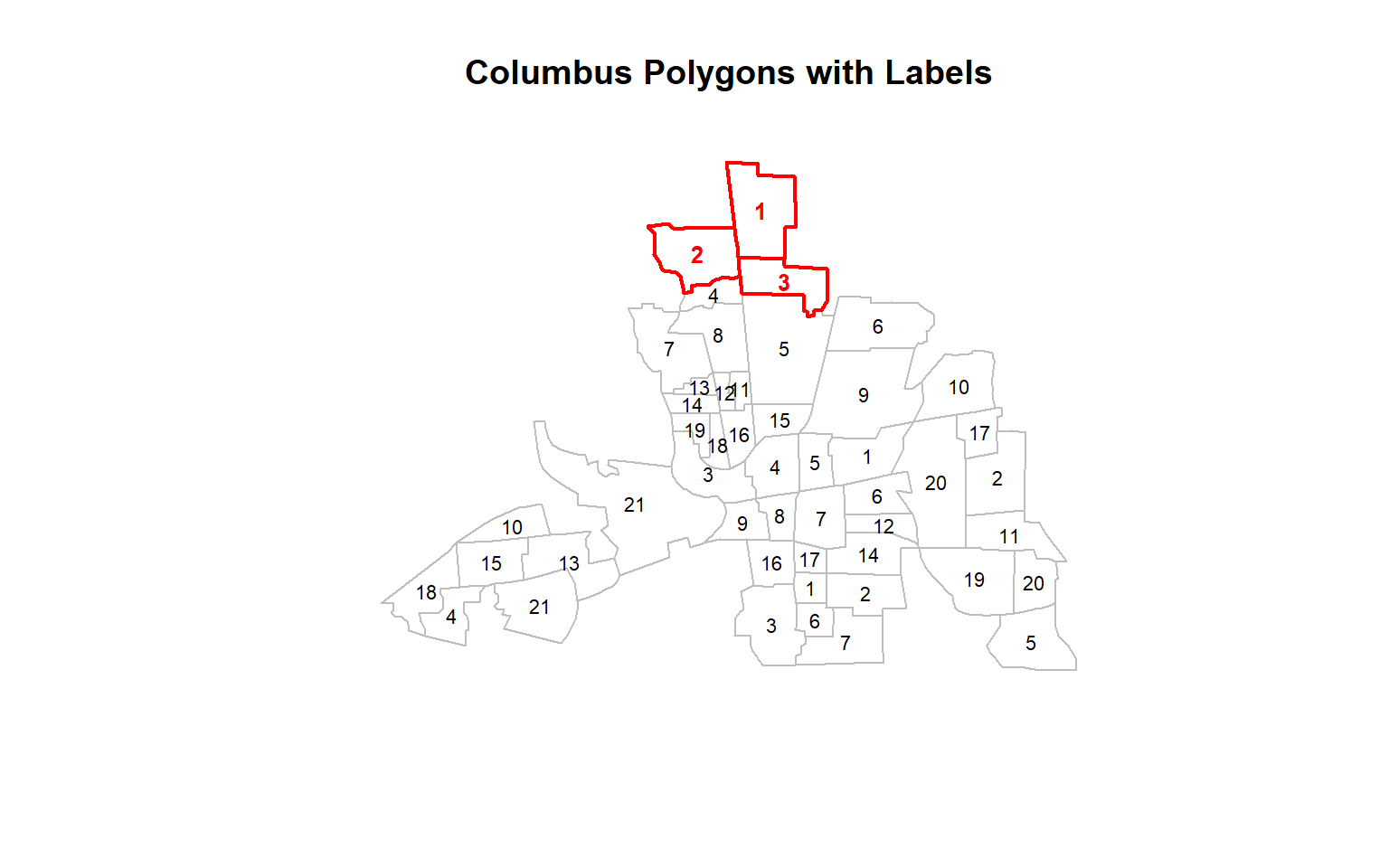

  2. What’s wrong here?

library(sf)
library(spdep)

columbus <- st_read(system.file("shapes/columbus.gpkg", package="spData")[1], quiet=TRUE)

nb <- poly2nb(as(columbus, "Spatial"))       # Queen neighbours
nb
Neighbour list object:
Number of regions: 49
Number of nonzero links: 236
Percentage nonzero weights: 9.829238
Average number of links: 4.816327
coords <- st_coordinates(st_centroid(columbus))
coords
              X        Y
 [1,]  8.827218 14.36908
 [2,]  8.332658 14.03162
 [3,]  9.012265 13.81972
 [4,]  8.460801 13.71696
 [5,]  9.007982 13.29637
 [6,]  9.739926 13.47463
 [7,]  8.118750 13.29570
 [8,]  8.496488 13.40261
 [9,]  9.630793 12.94272
[10,] 10.366383 13.00189
[11,]  8.669735 12.98012
[12,]  8.544996 12.95313
[13,]  8.349223 12.99609
[14,]  8.292702 12.86371
[15,]  8.973462 12.74159
[16,]  8.655866 12.62732
[17,] 10.528621 12.64748
[18,]  8.487918 12.54534
[19,]  8.312368 12.66672
[20,] 10.190582 12.25690
[21,]  7.847424 12.08500
[22,]  9.655244 12.46277
[23,] 10.671381 12.29157
[24,]  8.420744 12.31801
[25,]  8.938752 12.38051
[26,]  9.250921 12.41378
[27,]  9.737004 12.14969
[28,]  9.297976 11.97779
[29,]  8.977862 11.99401
[30,]  8.688719 11.93872
[31,]  6.892482 11.91415
[32,] 10.763784 11.84443
[33,]  9.783876 11.92271
[34,]  7.339431 11.62855
[35,]  9.668249 11.69254
[36,]  6.728838 11.63436
[37,]  8.912363 11.63031
[38,]  9.210527 11.65984
[39,]  6.221943 11.40251
[40,] 10.492493 11.50720
[41,] 10.953587 11.47925
[42,]  7.110051 11.29544
[43,]  9.214330 11.43277
[44,]  9.641904 11.39104
[45,]  8.910340 11.14864
[46,]  6.423385 11.21924
[47,] 10.935302 11.01003
[48,]  9.251957 11.18125
[49,]  9.492144 11.01496

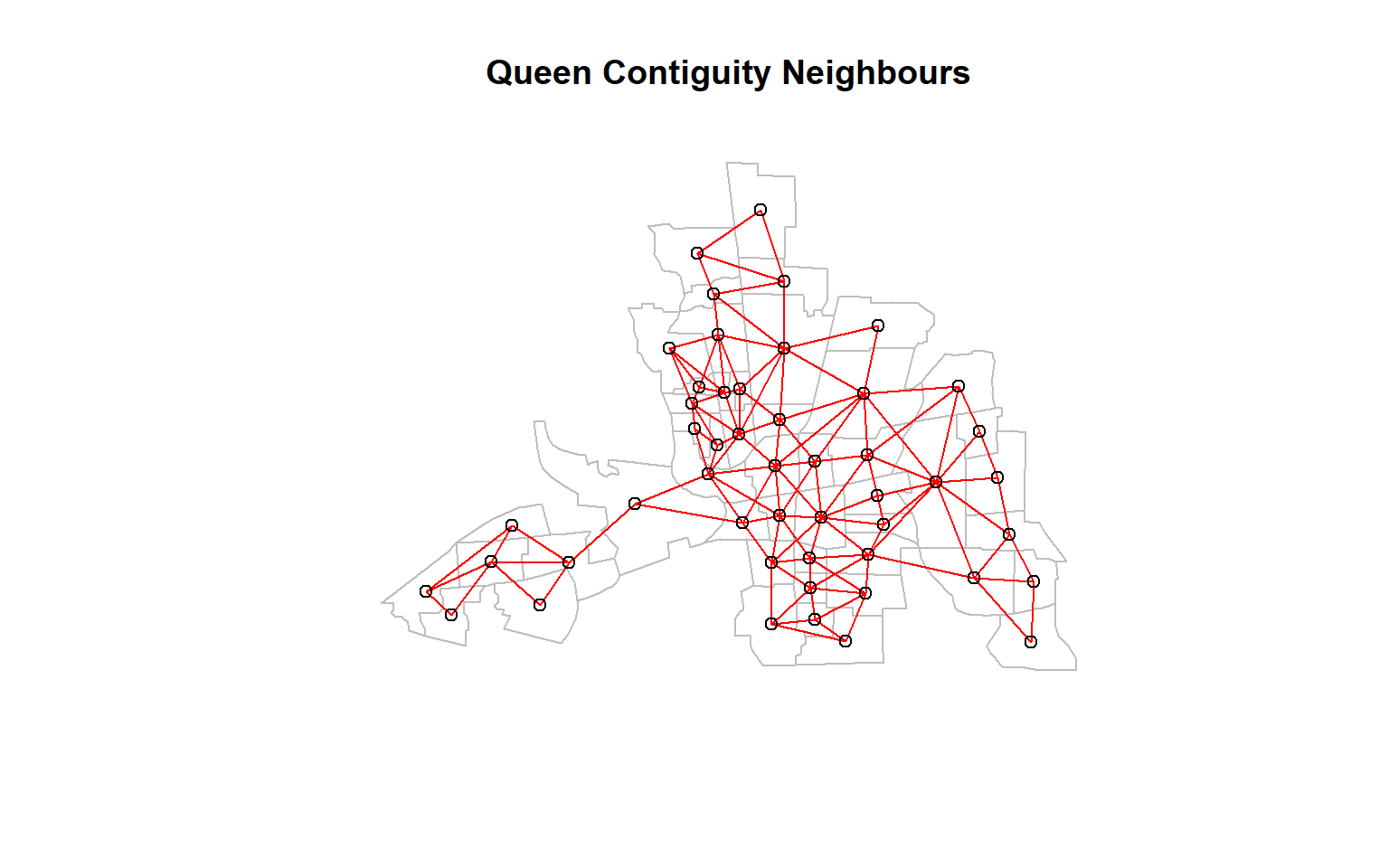

plot(st_geometry(columbus), border = "grey") # polygons

plot(st_geometry(columbus), border = "grey")
plot(nb, coords, add = TRUE, col = "red")    # neighbour links
title("Queen Contiguity Neighbours")

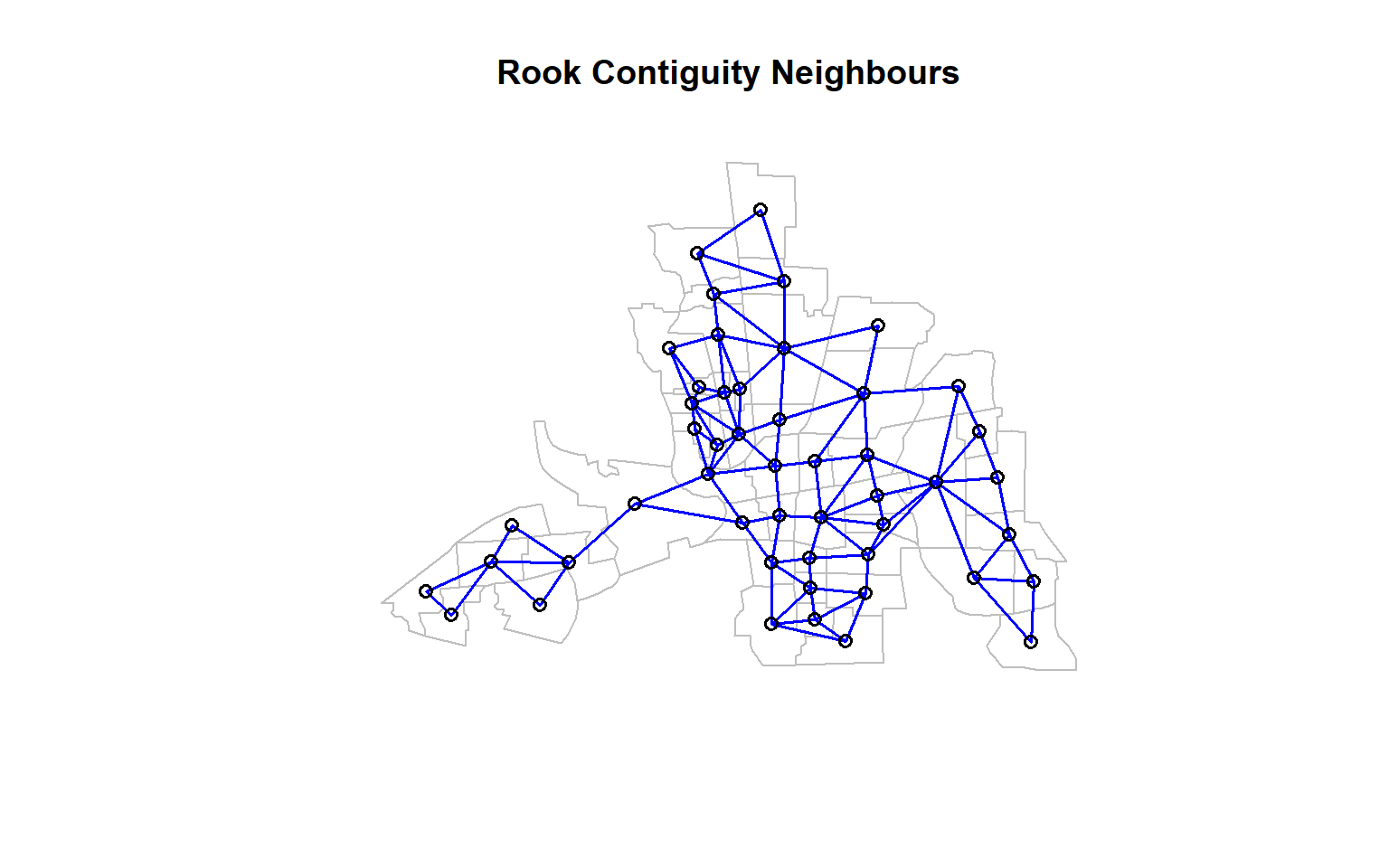

9.6 Exercise: Compute Rook Neighbours

9.7 Compare Rook vs Queen Neighbours

nb_queen <- poly2nb(as(columbus, "Spatial"), queen = TRUE)
nb_rook <- poly2nb(as(columbus, "Spatial"), queen = FALSE)
lengths(nb_queen)   # neighbours with queen
 [1]  2  3  4  4  8  2  4  6  8  4  5  6  4  6  6  8  3  4  3 10  3  6  3  7  8
[26]  6  4  9  7  5  3  4  4  4  7  5  6  6  3  5  3  2  6  5  4  2  2  4  3
lengths(nb_rook)    # neighbours with rook
 [1] 2 3 4 4 7 2 3 5 6 3 4 5 3 6 4 7 3 4 3 9 3 5 3 6 5 4 4 7 4 4 2 4 4 4 5 5 5 4
[39] 2 4 3 2 5 4 4 2 2 4 3
